    Clarity. Profound.

    With the unique Integrated-Light-Guide Digital PET technology and a 160-slice CT system, uMI Vista combines high quality functional images with fine anatomical structure visualization. The state-of-the-art reconstruction technology and comprehensive applications further boost diagnostic precision in oncology, neurology and cardiology.

    SiPM based Integrated-Light-Guide Digital PET Detector

    Clear Imaging Provided from Detection to Reconstruction

    Comprehensive PET and CT application

    a white uMI Vista with integrated-light-guide digital PET detector

    Integrated-Light-Guide Digital PET Detector

    the Integrated-Light-Guide of uMI Vista, improving light collection efficiency

    Integrated-Light-Guide

    Integrated Light Guide improves light collection efficiency and spatial resolution to achieve exceptional image quality.

    black chips with SiPM technology assembled on the digital PET detector

    SiPM

    SiPM technology increases photoelectric conversion efficiency to reduce signal loss, yielding outstanding image quality.

    numerous super-fine crystals assembled on the digital PET detector

    High-precision Crystal

    The ultra-fine crystal size significantly enhances image resolution.

    numerous modules align on the digital PET detector

    Modular Design

    High-level modular design achieves remarkable system reliability and serviceability.

    Clarity Imaging Chain

    numerous chips with systematic imaging chain engineering

    2.9mm NEMA Resolution

    Outstanding resolution performance is achieved through systematic imaging chain engineering.

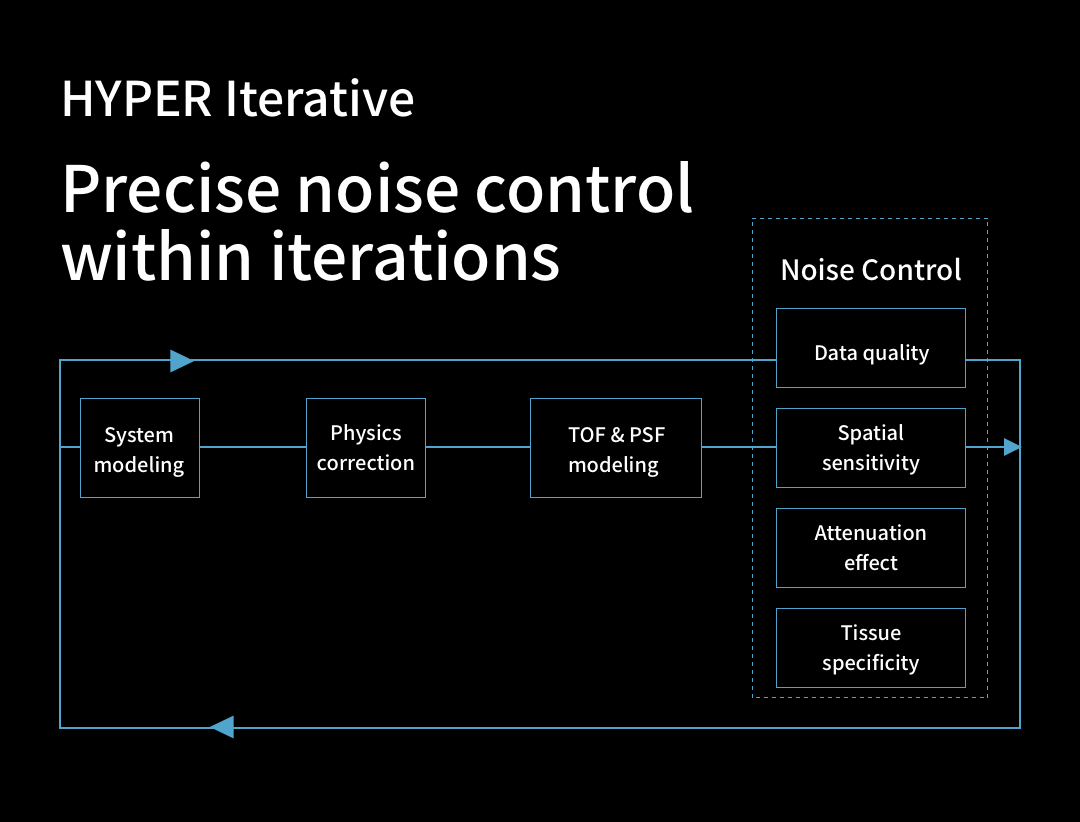

    the iteration workflow chart featuring noise-control

    HYPER Iterative Reconstruction

    Improves signal-to-noise ratio and contrast recovery to aid lesion detectability and quantitative accuracy.

    24cm Large Axial FOV

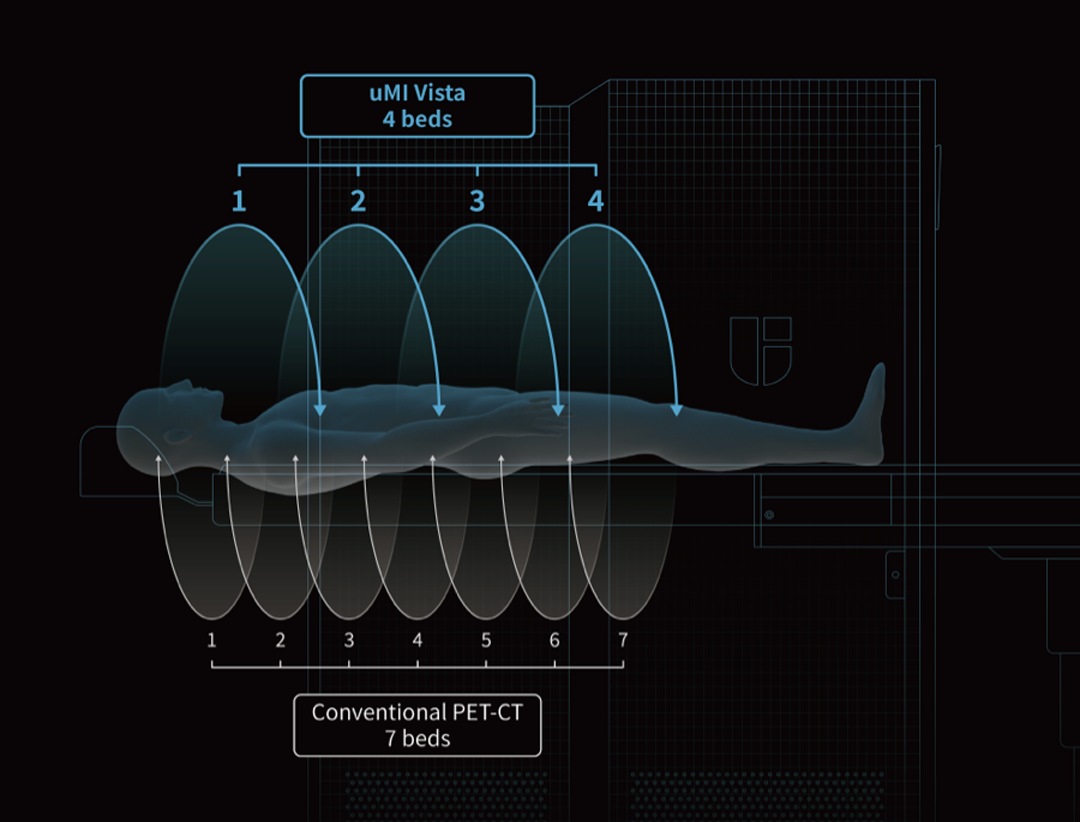

    a scan of the whole body with only 4-beds-positions

    4 beds positions for a whole-body scan

    Expand clinical efficiency.

    a patient's whole-body scan taking only 8 minutes

    High speed scanning

    Increase patient throughput.

    160-slice High-performance CT

    The integrated-Light-Guide Digital PET Detector of uMI Vista improves the signal-to-noise ratio (SNR) and significantly enhances the capability to capture fine details within images.
    0.3s rotation speed

    High temporal resolution CT imaging.

    70kV Scan Mode

    Lower CT radiation dose and better image contrast.

    0.5mm Acquisition Element

    Delivers high SNR and image quality.

    1024x1024 Reconstruction Matrix

    High spatial resolution to visualize fine anatomical details.

    The integrated-Light-Guide Digital PET Detector of uMI Vista improves the signal-to-noise ratio (SNR) and significantly enhances the capability to capture fine details within images.

    Clinical Case Studies

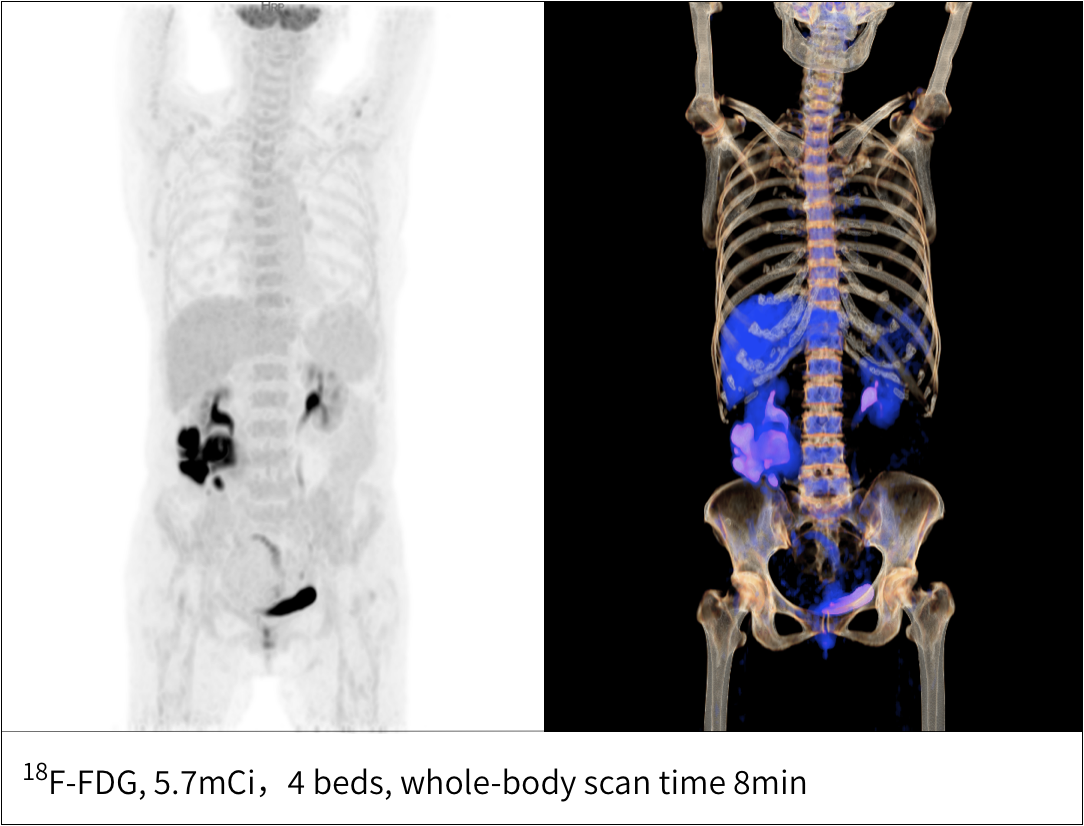

    The 4-bed whole body scan takes only 8 minutes.
    8 minutes whole-body scan
    40.3 BMI patient imaging is a clinical application of uMI Vista.
    40.3 BMI patient imaging
    0.05mCi/kg FDG imaging is a clinical application of uMI Vista.
    0.05mCi/kg FDG imaging
    uMI Vista detects the 2.2mm small lesion.
    2.2mm small lesion detection
    uMI Vista does high-resolution brain imaging.
    High resolution brain imaging
    uMI Vista facilitates Gastric lymphoma with FDG.
    Gastric lymphoma with FDG
    United Imaging Healthcare makes no claims about the use of the referenced radiopharmaceuticals.
